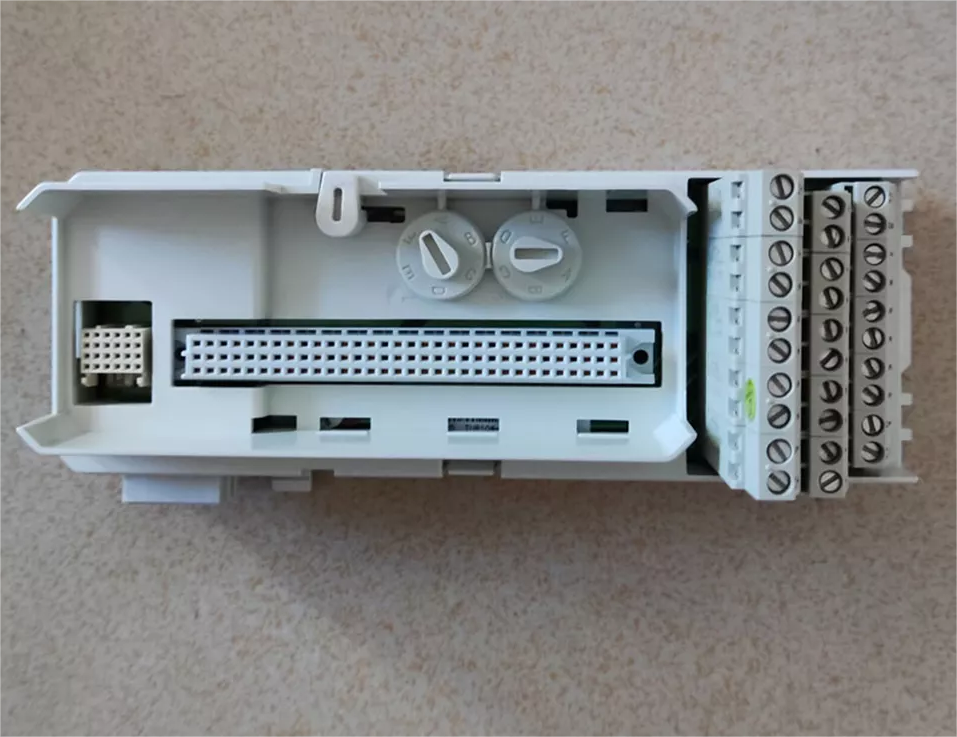

ABB TU810V1 3BSE013230R1 Compact MTU Compact Module Termination Unit
Product Details:
| Brand Name | ABB |
| Model | TU810V1 3BSE013230R1 |
| Product ID | 3BSE013230R1 |
| Condition | New |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin | Sweden (SE) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Description:
The TU810V1 is a compact 16-channel module termination unit (MTU) designed for $800 1/0 systems.This passive unit serves to connect field wiring to l/0 modules and integrates part of the ModuleBus. The MTU distributes the ModuleBus to l/0 modules and onward to the next MTU, ensuring correct address generation by shifting outgoing position signals accordingly. Mechanical keying allows configuration for various l/0 module types without impacting MU or module functionality, providing 36 different configurations through two keys.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations. The modules are devices that work with different voltage levels to adapt them. Accessories for electricity and electronics are industrial automation components. Electricity and electronics comprise products whose operation is based on the flow of electrical charges and electrons, such as digital indicators, signal converters, switches, thermostats or sensors.
The AC500-eCo from ABB is a range of uniquely scalable PLCs offering you unrivalled cost effectiveness for modern industrial automation applications where small-scale PLC solutions often represent the ideal solution. Based on the successful AC500 range, these extremely compact entry-level PLCs offer the most flexible and economical configuration available, low cost and straightforward servicing and all of the requirements of a modern control system for small applications – without compromising on the power and support you have come to expect from ABB.
The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
TU810V1 3BSE013230R1 is belong to ABB 800xA control system, it is a 16 channels Compact Module Termination Unit. TU810V1 can be used with I/O module, such as AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840. ABB TU810V13BSF013230R1 is a packaged module turbulence unit (MTU) from ABB, mainly used in S800 I/O system. It serves as a connecting bridge between I/O modules and field devices, responsible for the transmission and conversion of green signals.
Datasheet Link:
ABB TU810V1 3BSE013230R1.pdf
