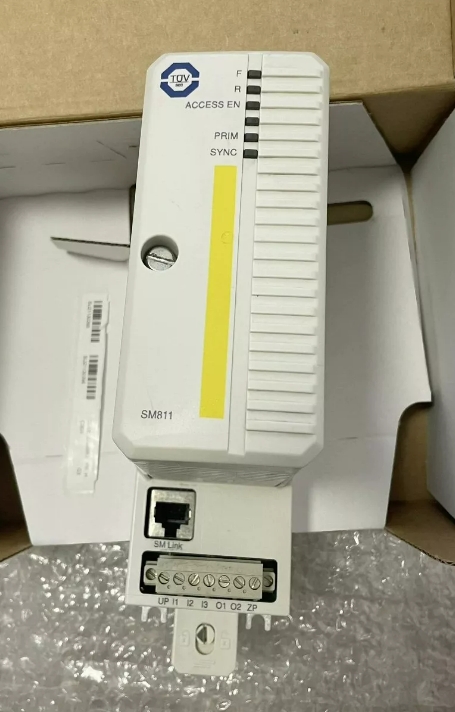

ABB SM811K01 3BSE018173R1 Safety Central Processing Unit Module High Integrity
Product Details:
| Brand Name | ABB |
| Model | SM811K01 3BSE018173R1 |
| Product ID | 3BSE018173R1 |
| Condition | New |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin | Sweden (SE) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Description:
The prime function of SM811, is to provide intelligent supervision of a controller during non-SIL and SIL1-2 operations, and together with a PM865 form a 1oo2 diverse structure for SIL3 applications.For high availability applications it is possible to have redundant SM811´s that work together with any of the two redundant CPUs. SM811 has a dedicated synchronization link to synchronize active and redundant SM for hot-insert and online upgrade. It is needed during hot-insert and online upgrade situations to copy data between two SM811s in a redundant setup.
The ABB SM811K01 Safety CPU module is designed for high-integrity safety applications, ensuring reliable performance and compliance with SlL3 standards. This high-integrity module is certified for $IL3. It requires configuration according to the Safety Manual. Local organizations must comply with qualifications to ensure successful sales of ABB safety systems and order safety equipment. The SM811K01 collaborates with the PM865 controller. It connects to the CEX bus after the BC810 CEX bus interconnection box.
High integrity, certified for SIL3. Requires configuration according to the Safety Manual. Collaborates with the PM865 and connects to the CEX bus after the BC810 CEX bus interconnection box. Includes SM811 Safety Module, TP868 Baseplate, and TK852V10 Synchronization Link Cable. S800 I/O is a distributed and modular I/O system that communicates with controllers over PROFIBUS-DP/DPV1 or direct (via Modulebus). The S800 I/O system is DIN rail mounted and consists of Fieldbus Communication Interfaces, Modulebus Modems, S800 I/O modules and Module Termination Units (MTU). S800 I/O modules (not S800L) are mounted on MTU's, this makes them hot-swappable. Depended on the mounting requirement (horizontal or vertical) and on the field termination needs (powering, fusing etc.) there are numerous of MTU's to choose from.
The ABB SM811K01 is a high-integrity safety CPU module certified for SIL3 (Safety Integrity Level 3). It is essential in ABB’s automation systems, especially where safety is critical. This module performs safety-related functions and ensures the safe operation of industrial equipment. Digital I/O modules have one LED per channel indicating the current state (on/off) and pulse counter I/O modules have two or more LEDs per channel. S800L I/O module has one dual color LED (STATUS) indicating the module status. All I/O modules have user parameters that can be configured using the engineering tool.
Datasheet Link:
ABB SM811K01 3BSE018173R1.pdf
