Product Details:

Description:

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate. ABB PM866K02 3BSE050199R1 is part of ABB AC 800 M rail-mounted modules family. PM866K02 including 2 pcs of PM866K01. The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface. The processor supports redundant operation, ensuring minimal downtime in critical environments like process automation. It's designed to fit into various DCS and PLC configurations for robust system control.

The ABB PM866K02 (3BSE050199R1) is a redundant processor unit designed for high-availability systems. It operates at a 133 MHz frequency and includes 64 MB of memory. The unit is part of ABB's AC 800M controller family, supporting reliable, redundant processing for critical industrial automation applications. AC800M controller is an important component in the control network. PM866 3BSE050200R1 PM866K01 3BSE050198R1 PM866K02 3BSE050199R1 supports two working modes: redundant and non-redundant, and two communication service modes: client/server.

The ABB PM866K02 can realize communication between controllers and with engineering station software. Through OPC Server service, data communication with third-party software and systems such as HMI can also be realized. AC800M controller supports a variety of commonly used communication protocols including MasterBus 300, COMLI, Modbus and Siemens 3964R, and can easily communicate with other controllers, automation systems and field devices. AC800M controller also supports additional serial communication protocols, which is suitable for communicating with external devices such as terminals, printers and special controllers. PM866 3BSE050200R1 PM866K01 3BSE050198R1 PM866K02 3BSE050199R1 The application program can be saved and downloaded to the controller via a CF flash card, or it can be loaded into the RAM memory of the target controller via a serial port or Ethernet.

Datasheet Link:

ABB PM866K02 3BSE050199R1.pdf

Redundant Processor Unit Power Contractor

ABB PM866K02 Power Contractor

3BSE050199R1 Power Contractor

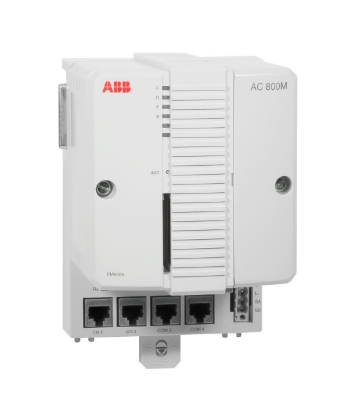

ABB PM866K02 3BSE050199R1 Redundant Processor Unit Power Contractor Images
