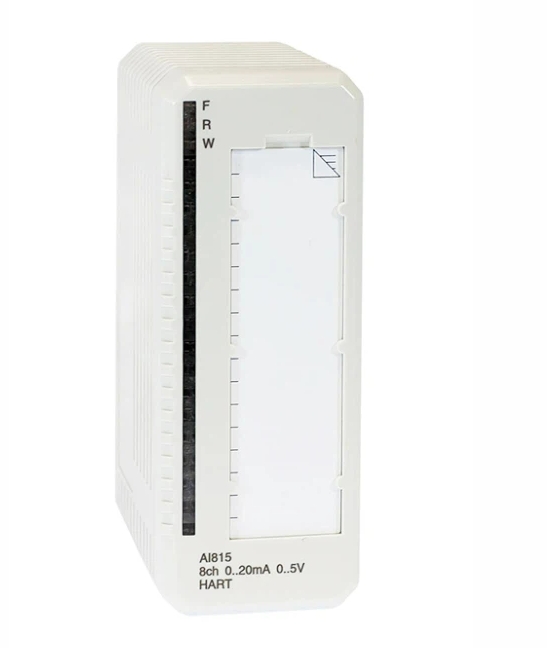

ABB AI815 3BSE052604R1 Analog Input Module Maximum Transmission Unit
Product Details:
| Brand Name | ABB |
| Model | AI815 3BSE052604R1 |
| Product ID | 3BSE052604R1 |
| Condition | New |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin | Sweden (SE) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |

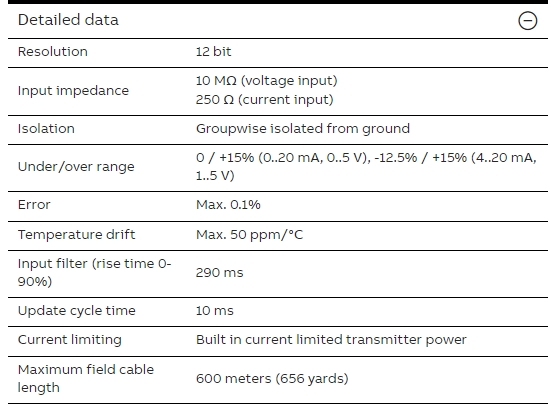

Additional Information:
| Type | Analog Input |
| Signal specification | 0..20 mA, 4..20 mA, 0..5 V, 1..5 V |
| Number of channels | 8 |
| Signal type | Unipolar single ended |
| HART | Yes |
| Mechanics | S800 |
Description:
The AI815 Analog Input Module has 8 channels. The modules can be configured for voltage or current inputs. Current and voltage signals cannot be mixed on the same I/O module. The voltage and current input is able to withstand an overvoltage or undervoltage of at least 11 V d.c. The input resistance for voltage input is greater than 10 M ohm, and the input resistance for current input is 250 ohm. The module distributes the external HART compatible transmitter supply to each channel. This adds a simple connection to distribute the supply to 2-wire or 3-wire transmitters. The transmitter power is supervised and current limited. If an external power supply is used for feeding HART transmitters, the power supply must be HART compatible.
ABB 3BSE052604R1 Analog Input HART 8 channels, 0(4)..20mA, 0(1)..5V, 12bit, single ended. Current limited transmitter power distribution. AI815 is equipped with advanced analog input capabilities for precise and reliable signal processing. The module's scalable design allows for flexibility in expanding your control system as needed. Benefit from fast and accurate processing of analog signals, ensuring real-time control in your applications. Its lightweight construction ensures easy handling during installation and maintenance.
The AI815 Analog Input Module features 8 channels and supports voltage or current inputs.Each module channel is dedicated to either voltage or current input; they cannot be mixed on the same I/0 module.The module can withstand overvoltage or undervoltage conditions up to 11 V d.c. Input resistance is greater than 10 M(2 for voltage input and 250 (for current input. It distributes external HART-compatible transmitter supply to each channel, facilitating connection to 2-wire or 3-wire transmitters. Transmitter power is supervised and current-limited, ensuring safe operation.
It may be integrated into ABB's bus system, such as PROFIBUS or MODBUS, to facilitate data exchange with the upper computer or other control units. All the manuals are provided as electronic documents on CD-ROM. The file format is Adobe Portable Document Format (PDF), which is the de facto standard for portable documents on the Internet. You can read them sequentially like conventional documents, or search and print necessary parts of these electronic documents “on demand” during engineering, for example.
